battery_sensor.h File Reference

#include "driver/gpio.h"
#include "esp_err.h"
#include "general/adc.h"

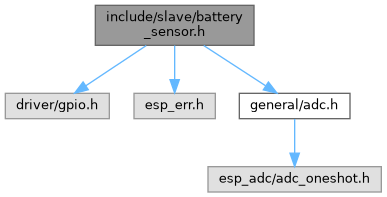

Include dependency graph for battery_sensor.h:

Go to the source code of this file.

Data Structures
struct	battery_sensor

Macros
#define	VOLTAGE_MULTIPLIER   2.0f
#define	BATTERY_SERIES_COUNT   3
#define	BATTERY_DURACELL_AA   1

Functions
int	battery_sensor_init (battery_sensor *sensor)
	Initialize the battery voltage sensor.
int	battery_sensor_read (battery_sensor *sensor)
	Read battery voltage and percentage.

Macro Definition Documentation

BATTERY_DURACELL_AA

#define BATTERY_DURACELL_AA   1

BATTERY_SERIES_COUNT

#define BATTERY_SERIES_COUNT   3

VOLTAGE_MULTIPLIER

#define VOLTAGE_MULTIPLIER   2.0f

Function Documentation

battery_sensor_init()

int battery_sensor_init

(

battery_sensor *

sensor

)

Initialize the battery voltage sensor.

Sets up ADC channel and calibration. Call once before battery_sensor_read().

Parameters

sensor

Pointer to battery_sensor (channel_pin must be set)

Returns

ESP_OK on success, error code otherwise

battery_sensor_read()

int battery_sensor_read

(

battery_sensor *

sensor

)

Read battery voltage and percentage.

Updates sensor->voltage_v and sensor->percentage.

Parameters

sensor

Pointer to initialized battery_sensor

Returns

ESP_OK on success, error code otherwise
