lora_msg_serializer.h File Reference

#include "esp_err.h"
#include "general/node_cfg.h"
#include "master/lora_msg_protocol.h"
#include <stdbool.h>
#include <stdint.h>

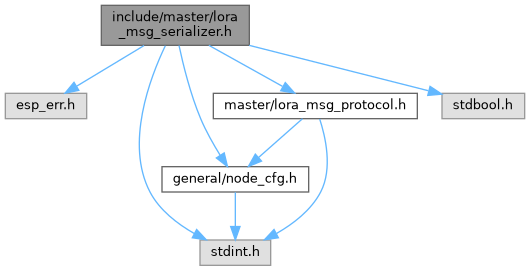

Include dependency graph for lora_msg_serializer.h:

Go to the source code of this file.

Macros
#define	LORA_REG_MSG_SIZE   42
#define	LORA_PERIODIC_HEADER_SIZE   2
#define	LORA_PERIODIC_SLAVE_SIZE   3
#define	LORA_PERIODIC_MAX_SIZE   (LORA_PERIODIC_HEADER_SIZE + MAX_SLAVE_NUM * LORA_PERIODIC_SLAVE_SIZE)
#define	LORA_ALARM_MSG_SIZE   2

Functions
uint8_t	lora_serialize_registration (uint8_t *buffer, uint8_t slave_id, const char *name, int32_t longitude, int32_t latitude)
	Serialize a registration message into a compact byte buffer.
uint8_t	lora_serialize_periodic (uint8_t *buffer, const slave_data *slaves, uint8_t slave_count)
	Serialize a periodic status message for all registered slaves.
uint8_t	lora_serialize_alarm (uint8_t *buffer, uint8_t slave_id)
	Serialize an alarm message.
int	lora_send_registration (uint8_t slave_id, const char *name, int32_t longitude, int32_t latitude)
	Send a registration message via LoRaWAN.
int	lora_send_periodic (const slave_data *slaves, uint8_t slave_count)
	Send periodic status for all slaves via LoRaWAN.
int	lora_send_alarm (uint8_t slave_id)
	Send an alarm message via LoRaWAN.

Macro Definition Documentation

LORA_ALARM_MSG_SIZE

#define LORA_ALARM_MSG_SIZE   2

LORA_PERIODIC_HEADER_SIZE

#define LORA_PERIODIC_HEADER_SIZE   2

LORA_PERIODIC_MAX_SIZE

#define LORA_PERIODIC_MAX_SIZE   (LORA_PERIODIC_HEADER_SIZE + MAX_SLAVE_NUM * LORA_PERIODIC_SLAVE_SIZE)

LORA_PERIODIC_SLAVE_SIZE

#define LORA_PERIODIC_SLAVE_SIZE   3

LORA_REG_MSG_SIZE

#define LORA_REG_MSG_SIZE   42

Function Documentation

lora_send_alarm()

int lora_send_alarm

(

uint8_t

slave_id

)

Send an alarm message via LoRaWAN.

Parameters

slave_id

ID of the slave that detected tampering/sabotage

Returns

ESP_OK on success

lora_send_periodic()

int lora_send_periodic	(	const slave_data *	slaves,
		uint8_t	slave_count
	)

Send periodic status for all slaves via LoRaWAN.

Parameters

slaves	Array of slave data
slave_count	Number of active slaves

Returns

ESP_OK on success

lora_send_registration()

int lora_send_registration	(	uint8_t	slave_id,
		const char *	name,
		int32_t	longitude,
		int32_t	latitude
	)

Send a registration message via LoRaWAN.

Parameters

slave_id	Slave device ID
name	Device name
longitude	GPS longitude (fixed-point, *1e6)
latitude	GPS latitude (fixed-point, *1e6)

Returns

ESP_OK on success

lora_serialize_alarm()

uint8_t lora_serialize_alarm	(	uint8_t *	buffer,
		uint8_t	slave_id
	)

Serialize an alarm message.

Format: [msg_type:1][slave_id:1] Total: 2 bytes

Parameters

buffer	Output buffer (must be at least LORA_ALARM_MSG_SIZE bytes)
slave_id	ID of the slave that triggered the alarm

Returns

Number of bytes written

lora_serialize_periodic()

uint8_t lora_serialize_periodic	(	uint8_t *	buffer,
		const slave_data *	slaves,
		uint8_t	slave_count
	)

Serialize a periodic status message for all registered slaves.

Format: [msg_type:1][slave_count:1][slave_data:N*3] Each slave: [slave_id:1][battery:1][moisture:1]

Parameters

buffer	Output buffer (must be at least LORA_PERIODIC_MAX_SIZE bytes)
slaves	Array of slave data structures
slave_count	Number of registered slaves (will be capped at MAX_SLAVE_NUM)

Returns

Number of bytes written

lora_serialize_registration()

uint8_t lora_serialize_registration	(	uint8_t *	buffer,
		uint8_t	slave_id,
		const char *	name,
		int32_t	longitude,
		int32_t	latitude
	)

Serialize a registration message into a compact byte buffer.

Format: [msg_type:1][slave_id:1][name:32][longitude:4][latitude:4] Total: 42 bytes

Parameters

buffer	Output buffer (must be at least LORA_REG_MSG_SIZE bytes)
slave_id	Slave device ID (0-15)
name	Device name (32 char max, will be padded/truncated)
longitude	GPS longitude as fixed-point (multiply by 1e6)
latitude	GPS latitude as fixed-point (multiply by 1e6)

Returns

Number of bytes written
