#include "esp_err.h"
#include <stdbool.h>
#include <stdint.h>
#include "master/ttn_credentials.h"

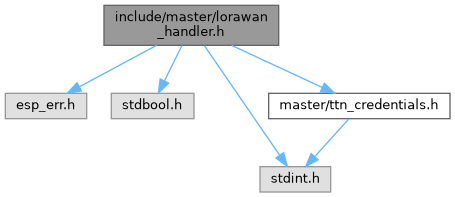

Include dependency graph for lorawan_handler.h:

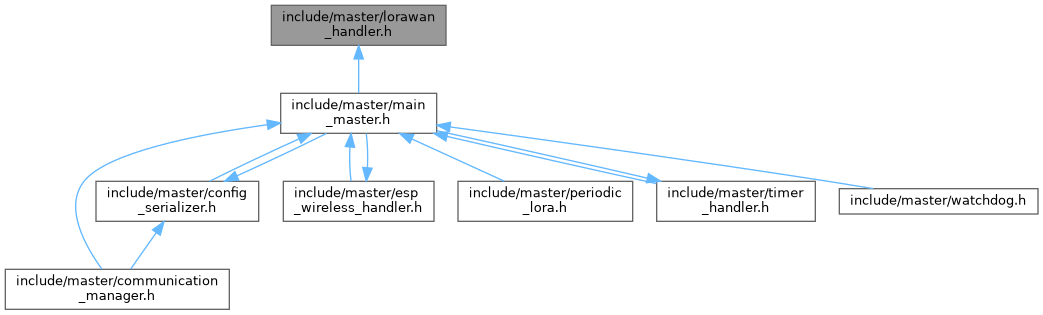

This graph shows which files directly or indirectly include this file:

Macros
#define	LORA_SPI_HOST SPI2_HOST

#define	LORA_PIN_MISO 19

#define	LORA_PIN_MOSI 27

#define	LORA_PIN_SCK 5

#define	LORA_PIN_CS 18

#define	LORA_PIN_RST 23

#define	LORA_PIN_DIO0 26

#define	LORA_PIN_DIO1 33

#define	LORA_PIN_DIO2 32

#define	LORA_FREQUENCY 868100000

#define	LORA_SPREADING_FACTOR 7

#define	LORA_BANDWIDTH 0

#define	LORA_CODING_RATE 1

#define	LORA_TX_POWER 20

Typedefs
typedef void(*	lorawan_tx_done_cb_t) (bool success)

Enumerations
enum	lorawan_status_t { LORAWAN_STATUS_IDLE , LORAWAN_STATUS_JOINING , LORAWAN_STATUS_JOINED , LORAWAN_STATUS_SENDING , LORAWAN_STATUS_TX_COMPLETE , LORAWAN_STATUS_ERROR }

Functions
int	lorawan_init (void)
	Initialize the LoRaWAN handler.

int	lorawan_join (void)
	Start OTAA join procedure.

bool	lorawan_is_joined (void)
	Check if device has joined the network.

lorawan_status_t	lorawan_get_status (void)
	Get current LoRaWAN status.

int	lorawan_send (uint8_t port, const uint8_t *data, uint8_t len, bool confirmed)
	Send data uplink to TTN.

void	lorawan_set_tx_done_callback (lorawan_tx_done_cb_t callback)
	Set callback for TX complete event.

void	lorawan_process (void)
	Process LoRaWAN events (call periodically from main loop)

void	lorawan_deinit (void)
	Deinitialize LoRaWAN handler.

Macro Definition Documentation

◆ LORA_BANDWIDTH

#define LORA_BANDWIDTH 0

◆ LORA_CODING_RATE

#define LORA_CODING_RATE 1

◆ LORA_FREQUENCY

#define LORA_FREQUENCY 868100000

◆ LORA_PIN_CS

#define LORA_PIN_CS 18

◆ LORA_PIN_DIO0

#define LORA_PIN_DIO0 26

◆ LORA_PIN_DIO1

#define LORA_PIN_DIO1 33

◆ LORA_PIN_DIO2

#define LORA_PIN_DIO2 32

◆ LORA_PIN_MISO

#define LORA_PIN_MISO 19

◆ LORA_PIN_MOSI

#define LORA_PIN_MOSI 27

◆ LORA_PIN_RST

#define LORA_PIN_RST 23

◆ LORA_PIN_SCK

#define LORA_PIN_SCK 5

◆ LORA_SPI_HOST

#define LORA_SPI_HOST SPI2_HOST

◆ LORA_SPREADING_FACTOR

#define LORA_SPREADING_FACTOR 7

◆ LORA_TX_POWER

#define LORA_TX_POWER 20

Typedef Documentation

◆ lorawan_tx_done_cb_t

typedef void(* lorawan_tx_done_cb_t) (bool success)

Enumeration Type Documentation

◆ lorawan_status_t

enum lorawan_status_t

Enumerator
LORAWAN_STATUS_IDLE
LORAWAN_STATUS_JOINING
LORAWAN_STATUS_JOINED
LORAWAN_STATUS_SENDING
LORAWAN_STATUS_TX_COMPLETE
LORAWAN_STATUS_ERROR

Function Documentation

◆ lorawan_deinit()

void lorawan_deinit ( void )

Deinitialize LoRaWAN handler.

◆ lorawan_get_status()

lorawan_status_t lorawan_get_status ( void )

Get current LoRaWAN status.

Returns: Current status

◆ lorawan_init()

int lorawan_init ( void )

Initialize the LoRaWAN handler.

Initializes SPI, configures the SX1276, and prepares for OTAA join.

Returns: ESP_OK on success, error code otherwise

◆ lorawan_is_joined()

bool lorawan_is_joined ( void )

Check if device has joined the network.

Returns: true if joined, false otherwise

◆ lorawan_join()

int lorawan_join ( void )

Start OTAA join procedure.

Attempts to join The Things Network using OTAA. This is a non-blocking call - use lorawan_get_status() to check progress.

Returns: ESP_OK if join request sent, error code otherwise

◆ lorawan_process()

void lorawan_process ( void )

Process LoRaWAN events (call periodically from main loop)

This should be called regularly to process radio events.

◆ lorawan_send()

int lorawan_send	(	uint8_t	port,
		const uint8_t *	data,
		uint8_t	len,
		bool	confirmed
	)

Send data uplink to TTN.

Parameters

port	LoRaWAN port (1-223)
data	Pointer to data buffer
len	Length of data (max 51 bytes for SF7-SF12)
confirmed	Whether to request confirmation (ACK)

Returns: ESP_OK if data queued for sending, error code otherwise

◆ lorawan_set_tx_done_callback()

void lorawan_set_tx_done_callback ( lorawan_tx_done_cb_t callback )

Set callback for TX complete event.
