sx1276.h File Reference

#include "driver/spi_master.h"
#include "esp_err.h"
#include <stdbool.h>
#include <stdint.h>

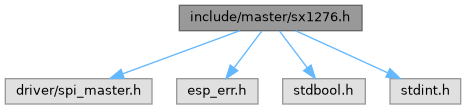

Include dependency graph for sx1276.h:

Go to the source code of this file.

Data Structures
struct	sx1276_config_t
struct	sx1276_lora_config_t

Macros
#define	SX1276_REG_FIFO   0x00
#define	SX1276_REG_OP_MODE   0x01
#define	SX1276_REG_FRF_MSB   0x06
#define	SX1276_REG_FRF_MID   0x07
#define	SX1276_REG_FRF_LSB   0x08
#define	SX1276_REG_PA_CONFIG   0x09
#define	SX1276_REG_PA_RAMP   0x0A
#define	SX1276_REG_OCP   0x0B
#define	SX1276_REG_LNA   0x0C
#define	SX1276_REG_FIFO_ADDR_PTR   0x0D
#define	SX1276_REG_FIFO_TX_BASE_ADDR   0x0E
#define	SX1276_REG_FIFO_RX_BASE_ADDR   0x0F
#define	SX1276_REG_FIFO_RX_CURRENT_ADDR   0x10
#define	SX1276_REG_IRQ_FLAGS_MASK   0x11
#define	SX1276_REG_IRQ_FLAGS   0x12
#define	SX1276_REG_RX_NB_BYTES   0x13
#define	SX1276_REG_PKT_SNR_VALUE   0x19
#define	SX1276_REG_PKT_RSSI_VALUE   0x1A
#define	SX1276_REG_MODEM_CONFIG_1   0x1D
#define	SX1276_REG_MODEM_CONFIG_2   0x1E
#define	SX1276_REG_SYMB_TIMEOUT_LSB   0x1F
#define	SX1276_REG_PREAMBLE_MSB   0x20
#define	SX1276_REG_PREAMBLE_LSB   0x21
#define	SX1276_REG_PAYLOAD_LENGTH   0x22
#define	SX1276_REG_MAX_PAYLOAD_LENGTH   0x23
#define	SX1276_REG_HOP_PERIOD   0x24
#define	SX1276_REG_FIFO_RX_BYTE_ADDR   0x25
#define	SX1276_REG_MODEM_CONFIG_3   0x26
#define	SX1276_REG_DETECTION_OPTIMIZE   0x31
#define	SX1276_REG_DETECTION_THRESHOLD   0x37
#define	SX1276_REG_SYNC_WORD   0x39
#define	SX1276_REG_DIO_MAPPING_1   0x40
#define	SX1276_REG_DIO_MAPPING_2   0x41
#define	SX1276_REG_VERSION   0x42
#define	SX1276_REG_PA_DAC   0x4D
#define	SX1276_MODE_SLEEP   0x00
#define	SX1276_MODE_STDBY   0x01
#define	SX1276_MODE_FSTX   0x02
#define	SX1276_MODE_TX   0x03
#define	SX1276_MODE_FSRX   0x04
#define	SX1276_MODE_RX_CONTINUOUS   0x05
#define	SX1276_MODE_RX_SINGLE   0x06
#define	SX1276_MODE_CAD   0x07
#define	SX1276_MODE_LORA   0x80
#define	SX1276_IRQ_CAD_DETECTED   0x01
#define	SX1276_IRQ_FHSS_CHANGE_CHANNEL   0x02
#define	SX1276_IRQ_CAD_DONE   0x04
#define	SX1276_IRQ_TX_DONE   0x08
#define	SX1276_IRQ_VALID_HEADER   0x10
#define	SX1276_IRQ_PAYLOAD_CRC_ERROR   0x20
#define	SX1276_IRQ_RX_DONE   0x40
#define	SX1276_IRQ_RX_TIMEOUT   0x80

Functions
int	sx1276_init (const sx1276_config_t *config)
	Initialize SX1276: GPIOs, SPI, reset chip, switch to LoRa and standby.
int	sx1276_configure_lora (const sx1276_lora_config_t *config)
	Set LoRa parameters: frequency, SF, BW, TX power, sync word.
int	sx1276_set_mode (uint8_t mode)
	Set operating mode (standby, TX, RX, etc.)
int	sx1276_transmit (const uint8_t *data, uint8_t len)
	Load payload into FIFO and start transmit.
int	sx1276_start_receive (void)
	Start continuous receive mode.
int	sx1276_read_received (uint8_t *data, uint8_t *len, uint8_t max_len)
	Copy last received packet into buffer.
bool	sx1276_is_tx_done (void)
	Check if last transmit has finished.
bool	sx1276_is_rx_done (void)
	Check if a packet has been received.
void	sx1276_clear_irq (void)
	Clear all IRQ flags.
uint8_t	sx1276_get_irq_flags (void)
	Read raw IRQ flags register.
uint8_t	sx1276_read_reg (uint8_t reg)
	Read one SX1276 register (low-level)
void	sx1276_write_reg (uint8_t reg, uint8_t value)
	Write one SX1276 register (low-level)
void	sx1276_reset (void)
	Hardware reset via RST pin.

Macro Definition Documentation

SX1276_IRQ_CAD_DETECTED

#define SX1276_IRQ_CAD_DETECTED   0x01

SX1276_IRQ_CAD_DONE

#define SX1276_IRQ_CAD_DONE   0x04

SX1276_IRQ_FHSS_CHANGE_CHANNEL

#define SX1276_IRQ_FHSS_CHANGE_CHANNEL   0x02

SX1276_IRQ_PAYLOAD_CRC_ERROR

#define SX1276_IRQ_PAYLOAD_CRC_ERROR   0x20

SX1276_IRQ_RX_DONE

#define SX1276_IRQ_RX_DONE   0x40

SX1276_IRQ_RX_TIMEOUT

#define SX1276_IRQ_RX_TIMEOUT   0x80

SX1276_IRQ_TX_DONE

#define SX1276_IRQ_TX_DONE   0x08

SX1276_IRQ_VALID_HEADER

#define SX1276_IRQ_VALID_HEADER   0x10

SX1276_MODE_CAD

#define SX1276_MODE_CAD   0x07

SX1276_MODE_FSRX

#define SX1276_MODE_FSRX   0x04

SX1276_MODE_FSTX

#define SX1276_MODE_FSTX   0x02

SX1276_MODE_LORA

#define SX1276_MODE_LORA   0x80

SX1276_MODE_RX_CONTINUOUS

#define SX1276_MODE_RX_CONTINUOUS   0x05

SX1276_MODE_RX_SINGLE

#define SX1276_MODE_RX_SINGLE   0x06

SX1276_MODE_SLEEP

#define SX1276_MODE_SLEEP   0x00

SX1276_MODE_STDBY

#define SX1276_MODE_STDBY   0x01

SX1276_MODE_TX

#define SX1276_MODE_TX   0x03

SX1276_REG_DETECTION_OPTIMIZE

#define SX1276_REG_DETECTION_OPTIMIZE   0x31

SX1276_REG_DETECTION_THRESHOLD

#define SX1276_REG_DETECTION_THRESHOLD   0x37

SX1276_REG_DIO_MAPPING_1

#define SX1276_REG_DIO_MAPPING_1   0x40

SX1276_REG_DIO_MAPPING_2

#define SX1276_REG_DIO_MAPPING_2   0x41

SX1276_REG_FIFO

#define SX1276_REG_FIFO   0x00

SX1276_REG_FIFO_ADDR_PTR

#define SX1276_REG_FIFO_ADDR_PTR   0x0D

SX1276_REG_FIFO_RX_BASE_ADDR

#define SX1276_REG_FIFO_RX_BASE_ADDR   0x0F

SX1276_REG_FIFO_RX_BYTE_ADDR

#define SX1276_REG_FIFO_RX_BYTE_ADDR   0x25

SX1276_REG_FIFO_RX_CURRENT_ADDR

#define SX1276_REG_FIFO_RX_CURRENT_ADDR   0x10

SX1276_REG_FIFO_TX_BASE_ADDR

#define SX1276_REG_FIFO_TX_BASE_ADDR   0x0E

SX1276_REG_FRF_LSB

#define SX1276_REG_FRF_LSB   0x08

SX1276_REG_FRF_MID

#define SX1276_REG_FRF_MID   0x07

SX1276_REG_FRF_MSB

#define SX1276_REG_FRF_MSB   0x06

SX1276_REG_HOP_PERIOD

#define SX1276_REG_HOP_PERIOD   0x24

SX1276_REG_IRQ_FLAGS

#define SX1276_REG_IRQ_FLAGS   0x12

SX1276_REG_IRQ_FLAGS_MASK

#define SX1276_REG_IRQ_FLAGS_MASK   0x11

SX1276_REG_LNA

#define SX1276_REG_LNA   0x0C

SX1276_REG_MAX_PAYLOAD_LENGTH

#define SX1276_REG_MAX_PAYLOAD_LENGTH   0x23

SX1276_REG_MODEM_CONFIG_1

#define SX1276_REG_MODEM_CONFIG_1   0x1D

SX1276_REG_MODEM_CONFIG_2

#define SX1276_REG_MODEM_CONFIG_2   0x1E

SX1276_REG_MODEM_CONFIG_3

#define SX1276_REG_MODEM_CONFIG_3   0x26

SX1276_REG_OCP

#define SX1276_REG_OCP   0x0B

SX1276_REG_OP_MODE

#define SX1276_REG_OP_MODE   0x01

SX1276_REG_PA_CONFIG

#define SX1276_REG_PA_CONFIG   0x09

SX1276_REG_PA_DAC

#define SX1276_REG_PA_DAC   0x4D

SX1276_REG_PA_RAMP

#define SX1276_REG_PA_RAMP   0x0A

SX1276_REG_PAYLOAD_LENGTH

#define SX1276_REG_PAYLOAD_LENGTH   0x22

SX1276_REG_PKT_RSSI_VALUE

#define SX1276_REG_PKT_RSSI_VALUE   0x1A

SX1276_REG_PKT_SNR_VALUE

#define SX1276_REG_PKT_SNR_VALUE   0x19

SX1276_REG_PREAMBLE_LSB

#define SX1276_REG_PREAMBLE_LSB   0x21

SX1276_REG_PREAMBLE_MSB

#define SX1276_REG_PREAMBLE_MSB   0x20

SX1276_REG_RX_NB_BYTES

#define SX1276_REG_RX_NB_BYTES   0x13

SX1276_REG_SYMB_TIMEOUT_LSB

#define SX1276_REG_SYMB_TIMEOUT_LSB   0x1F

SX1276_REG_SYNC_WORD

#define SX1276_REG_SYNC_WORD   0x39

SX1276_REG_VERSION

#define SX1276_REG_VERSION   0x42

Function Documentation

sx1276_clear_irq()

void sx1276_clear_irq

(

void

)

Clear all IRQ flags.

Call after handling TX done, RX done, or CRC error.

sx1276_configure_lora()

int sx1276_configure_lora

(

const sx1276_lora_config_t *

config

)

Set LoRa parameters: frequency, SF, BW, TX power, sync word.

Call after sx1276_init() before transmit or receive.

Parameters

config

LoRa modulation and RF parameters

Returns

ESP_OK on success, error code otherwise

sx1276_get_irq_flags()

uint8_t sx1276_get_irq_flags

(

void

)

Read raw IRQ flags register.

Returns

IRQ flags (e.g. SX1276_IRQ_PAYLOAD_CRC_ERROR, SX1276_IRQ_RX_DONE)

sx1276_init()

int sx1276_init

(

const sx1276_config_t *

config

)

Initialize SX1276: GPIOs, SPI, reset chip, switch to LoRa and standby.

Parameters

config

Pin and SPI host configuration

Returns

ESP_OK on success (version check passes), error code otherwise

sx1276_is_rx_done()

bool sx1276_is_rx_done

(

void

)

Check if a packet has been received.

Returns

true when a packet is available (call sx1276_read_received), false otherwise

sx1276_is_tx_done()

bool sx1276_is_tx_done

(

void

)

Check if last transmit has finished.

Returns

true when TX is done, false otherwise

sx1276_read_received()

int sx1276_read_received	(	uint8_t *	data,
		uint8_t *	len,
		uint8_t	max_len
	)

Copy last received packet into buffer.

Call only after sx1276_is_rx_done() returns true.

Parameters

data	Output buffer for payload
len	On input: max_len; on output: actual received length
max_len	Maximum bytes to copy

Returns

ESP_OK on success, error code otherwise

sx1276_read_reg()

uint8_t sx1276_read_reg

(

uint8_t

reg

)

Read one SX1276 register (low-level)

Parameters

reg	Register address

Returns

Register value

sx1276_reset()

void sx1276_reset

(

void

)

Hardware reset via RST pin.

Holds RST low then high; use before or during init.

sx1276_set_mode()

int sx1276_set_mode

(

uint8_t

mode

)

Set operating mode (standby, TX, RX, etc.)

Parameters

mode	One of SX1276_MODE_STDBY, SX1276_MODE_TX, SX1276_MODE_RX_CONTINUOUS, etc.

Returns

ESP_OK on success, error code otherwise

sx1276_start_receive()

int sx1276_start_receive

(

void

)

Start continuous receive mode.

Use sx1276_is_rx_done() then sx1276_read_received() to get the packet.

Returns

ESP_OK on success, error code otherwise

sx1276_transmit()

int sx1276_transmit	(	const uint8_t *	data,
		uint8_t	len
	)

Load payload into FIFO and start transmit.

Poll sx1276_is_tx_done() for completion.

Parameters

data	Payload bytes
len	Payload length (bytes)

Returns

ESP_OK on success, error code otherwise

sx1276_write_reg()

void sx1276_write_reg	(	uint8_t	reg,
		uint8_t	value
	)

Write one SX1276 register (low-level)

Parameters

reg	Register address
value	Value to write
